MetricsHub
MetricsHub Enterprise 1.0.02

Grafana Dashboards

MetricsHub collects the hardware health and performance metrics as well as the sustainability KPIs of any server, storage system, or network switch available in your on-prem infrastructure and exposes the telemetry data in the Hardware Main (MetricsHub), Hardware Site (MetricsHub), and Hardware Host (MetricsHub) Grafana dashboards.

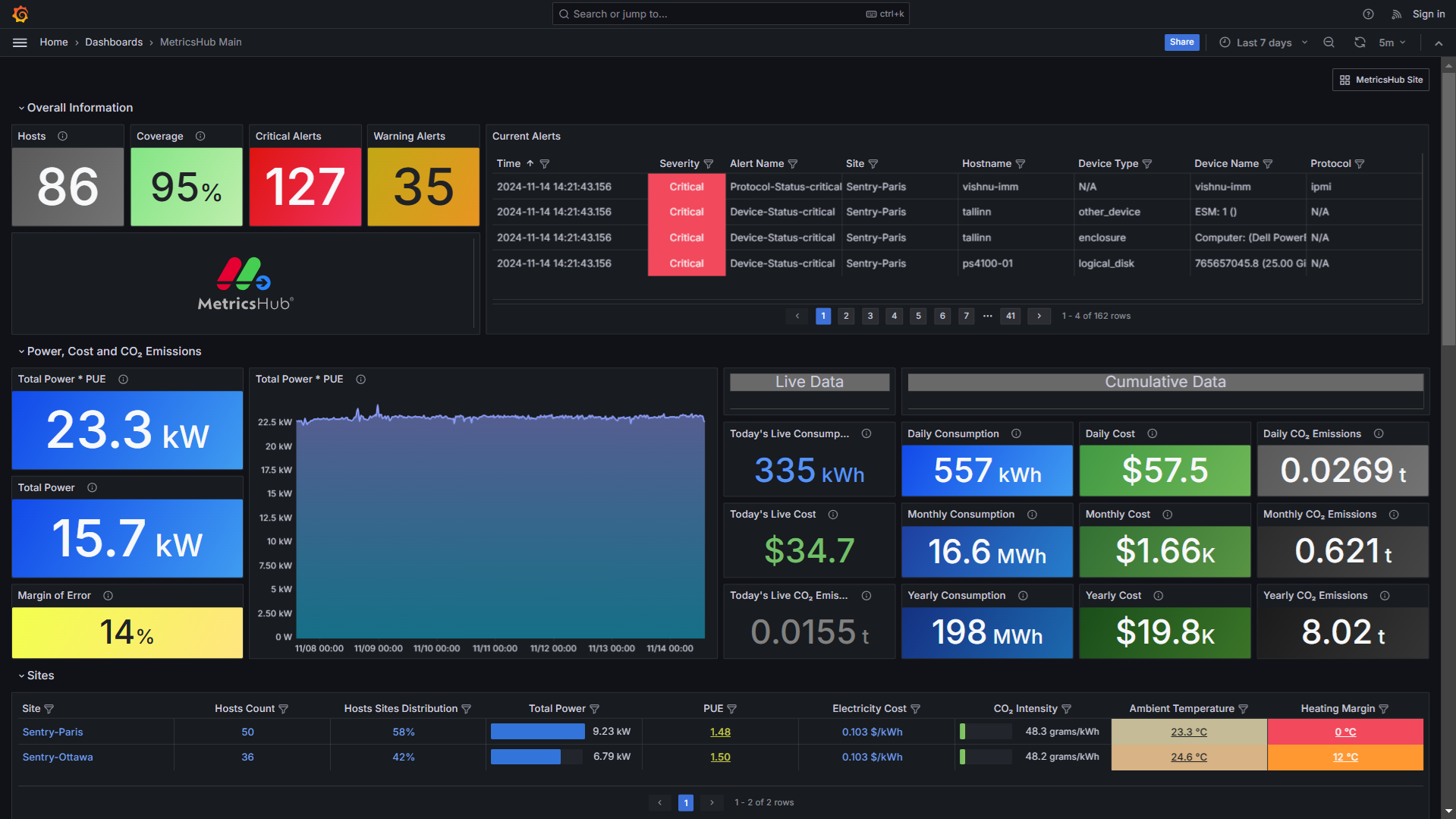

MetricsHub Main - Overview of all monitored sites

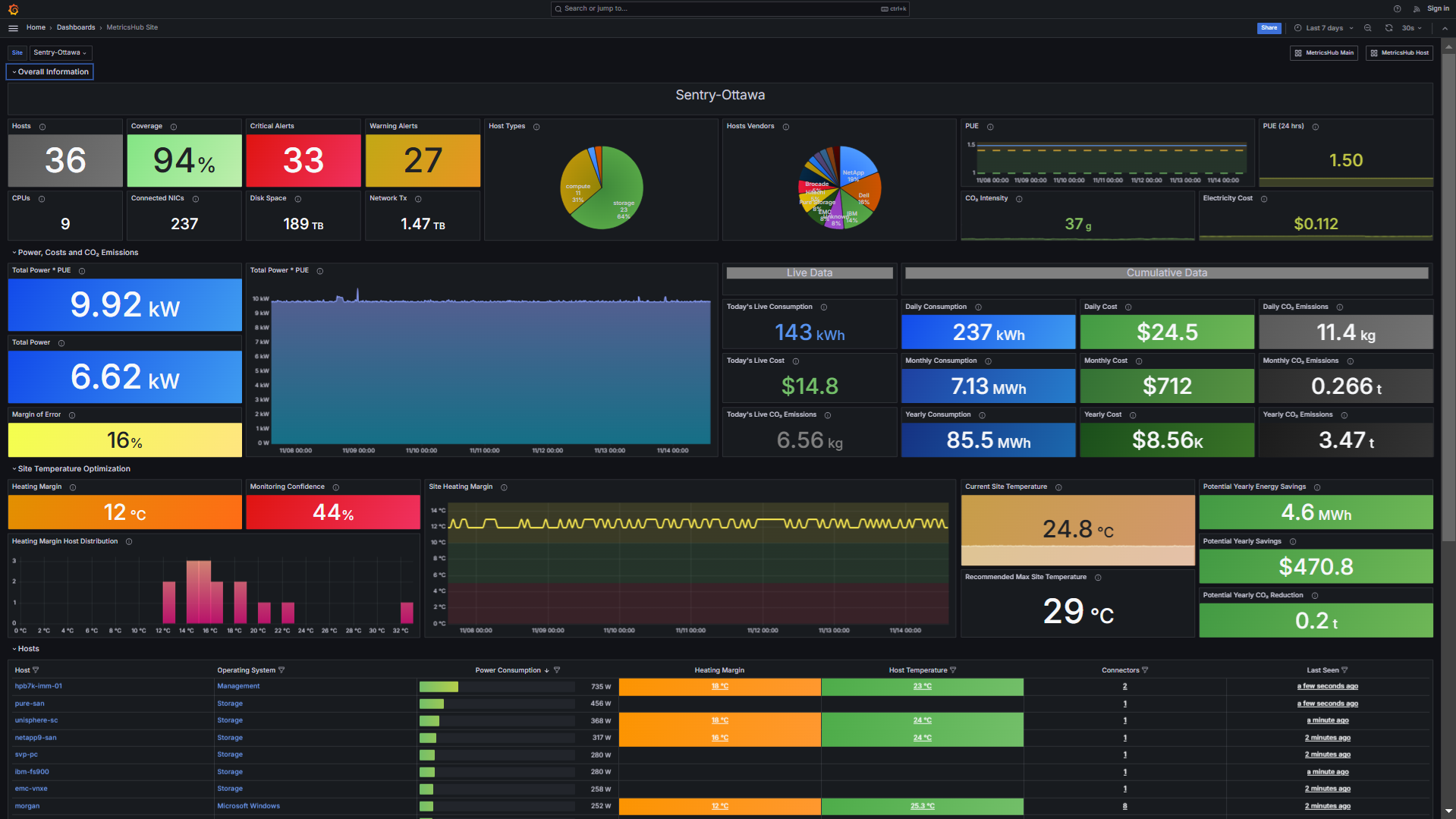

MetricsHub Site - Metrics associated to one site and its monitored hosts

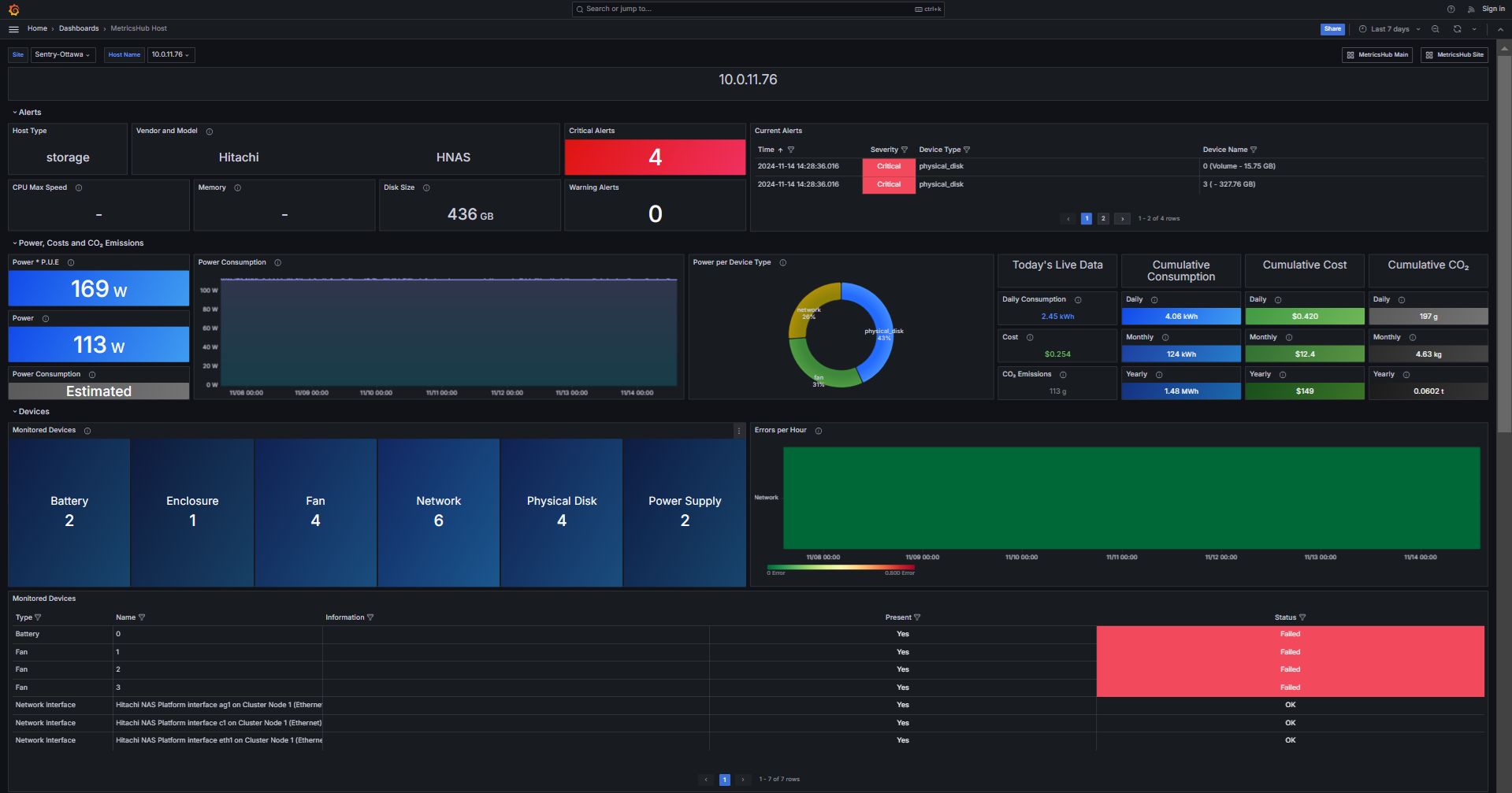

MetricsHub Host - Metrics associated to one host and its internal components

In this section, you will learn how to import the MetricsHub dashboards in Grafana.

Prerequisites

Before importing the MetricsHub dashboards in Grafana, ensure that you have:

  1. configured the monitoring of your resources[1]
  2. configured the sustainability metrics[2]
  3. configured the Prometheus Server[3]
  4. run both MetricsHub and the Prometheus server.

Importing the MetricsHub dashboards

  1. Log on to Grafana

  2. Import[4] the dashboard(s)

  3. Enter the dashboard ID:

  4. Click Load

  5. Select the Prometheus datasource

  6. Click Import

  7. Repeat the procedure to import all the Hardware (MetricsHub) dashboards.

The MetricsHub dashboards are now loaded in Grafana:

Dashboard Description
Hardware Main (MetricsHub) Overview of all monitored sites
Hardware Site (MetricsHub) Metrics associated to one site (a data center or a server room) and its monitored hosts
Hardware Host (MetricsHub) Metrics associated to one host and its internal components
