MetricsHub CLI (metricshub)

Overview

The metricshub CLI is the core MetricsHub's engine wrapped in a command line interface. System administrators can easily invoke this tool in a shell to discover and report problems related to the specified resources, including hardware, systems, applications, services, etc.

The detailed list of systems supported by the MetricsHub community (manufacturer and product family and the required instrumentation stack) is listed in Connectors Directory[1].

The quantity and quality of the information that MetricsHub will gather depends on the instrumentation stack available on the targeted resource (host).

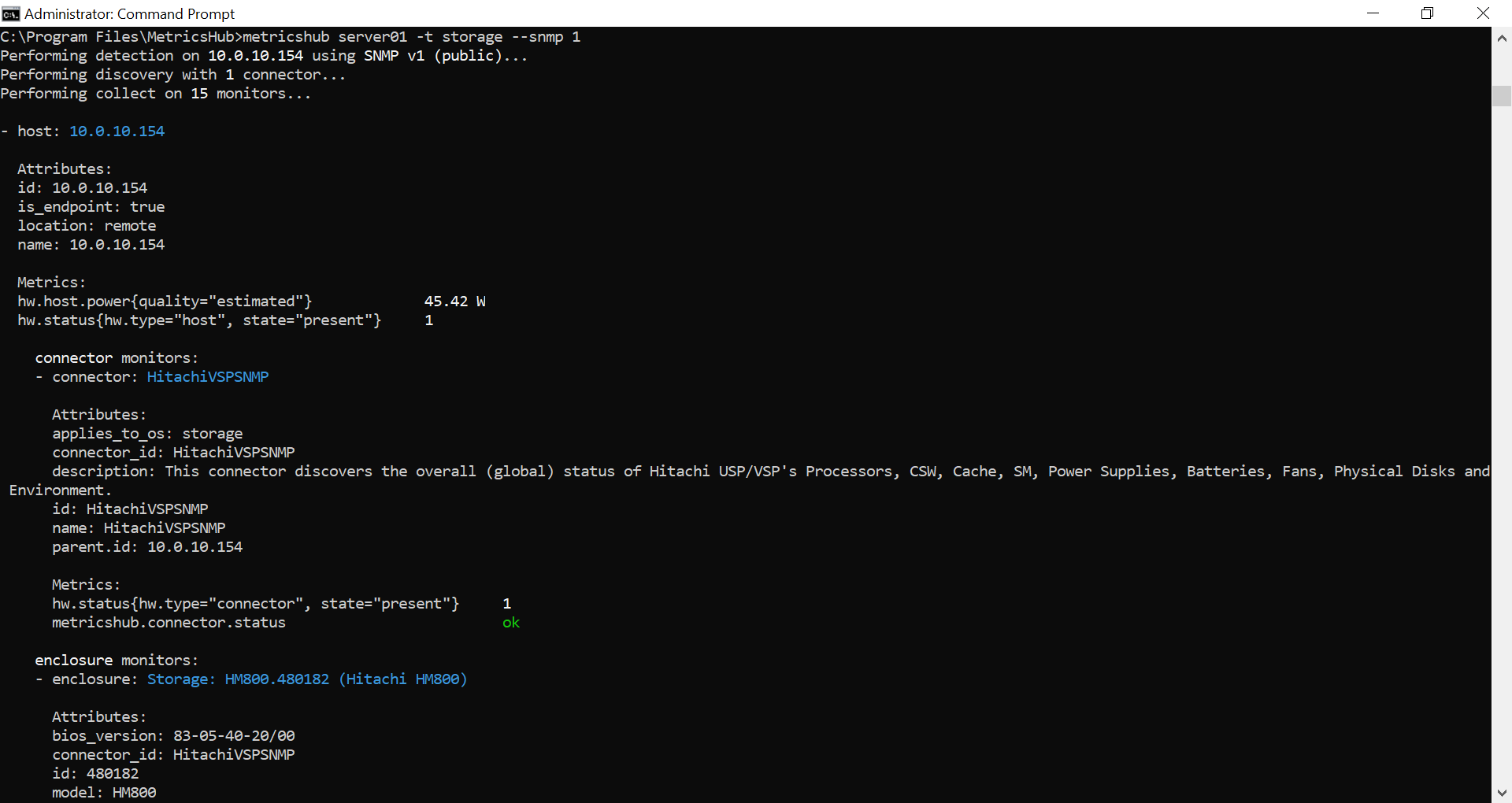

Output example for an Hitachi system

Only a few options are required to run the metricshub command:

  • Hostname or IP address of the device to be monitored
  • Device type
  • Protocols to be used:
    • HTTP
    • IPMI-over-LAN
    • SSH
    • SNMP
    • SNMPV3
    • WBEM
    • WMI (on Windows only)
    • WinRM
    • JDBC
  • Credentials

Usage of MetricsHub

The metricshub command can be used to troubleshoot the monitoring performed by the MetricsHub Agent (the core engine).

The Basics

The metricshub command invokes the MetricsHub Engine against one resource and performs 3 tasks:

  1. Detection of the instrumentation stack on the targeted resource (host)
  2. Discovery of the resource's components
  3. Collection of metrics and status for each resource's component

The metricshub command requires a few parameters to run:

  • the hostname to connect to
  • the type of the resource (Windows, Linux, Management, Storage, Network, AIX, HP-UX, Solaris)
  • the protocols to use to gather information from the resource (HTTP, IPMI, SNMP, SNMPV3, SSH, WBEM or WMI)
  • the credentials

Example:

$ metricshub server01 -t win --snmp 1 --community secret

The above command will connect to server01 (a Windows system), and will detect which instrumentation stack responds to SNMP version 1 with the secret community.

Assuming server01 is an Hitachi server, the metricshub output will look like:

Monitoring the server01 Windows system with SNMP

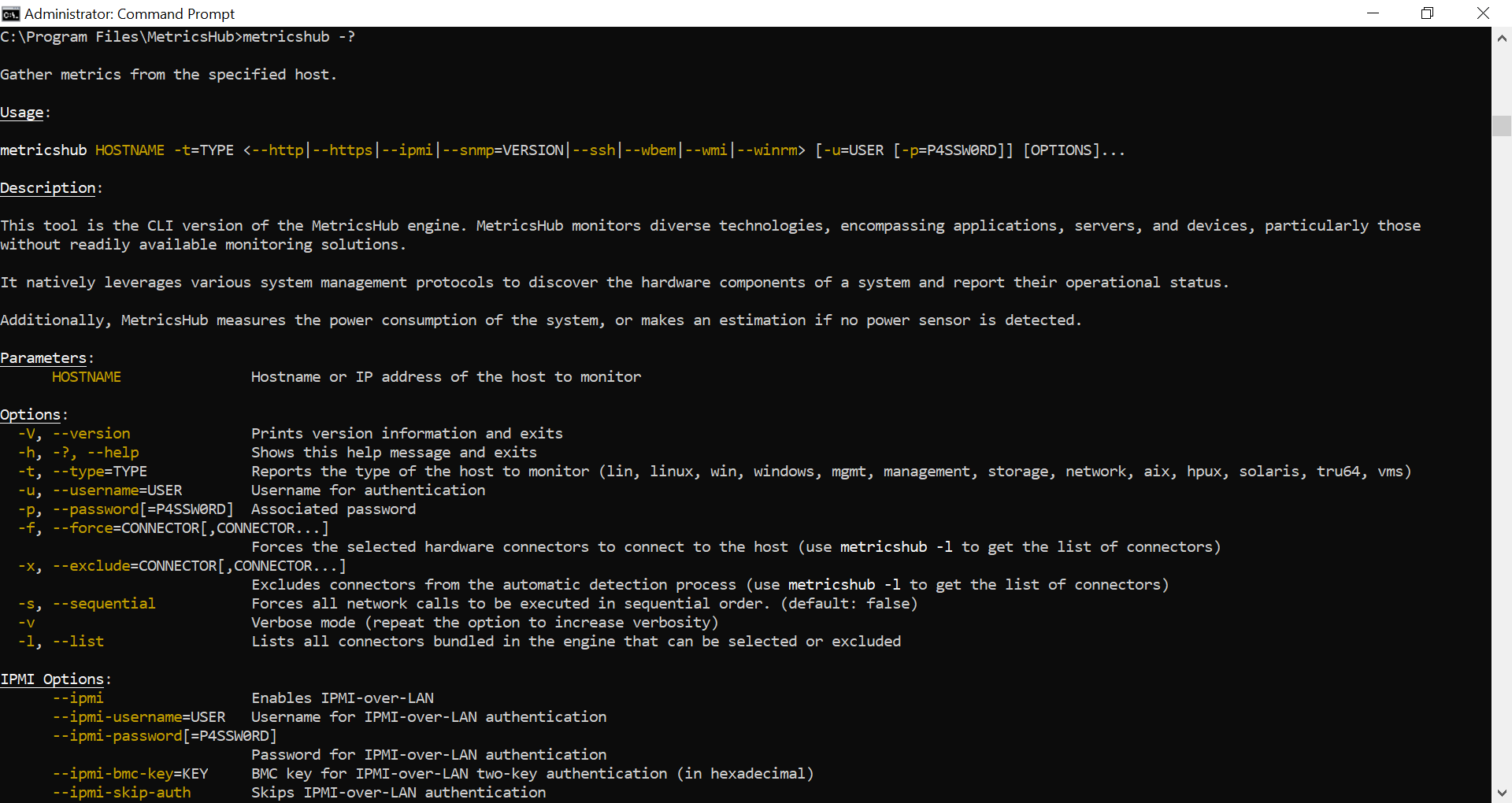

To learn more about the various options available, simply run the below command:

$ metricshub -h

Verbose Modes

To get additional details about the operations performed by the MetricsHub Engine, run:

  • -v to display internal warning messages (WARN)
  • -vv to get details about each operation performed (INFO)
  • -vvv to get initialization and connections details (DEBUG)
  • -vvvv to get full visibility about what is happening (TRACE)

Examples

Linux, SNMP v1

$ metricshub HOST02 -t linux --snmp 1 --community COMM02

This command will connect to the HOST02 Linux system using SNMP version 1 and the COMM02 community. If a known SNMP agent is running on this host, metricshub will leverage it to discover the physical components of the system and collect various metrics.

Note: If no SNMP community is specified, public is assumed by default.

Ouf-of-band Management Card, IPMI-over-LAN

$ metricshub MGMT06 -t oob --ipmi -u USER

This command will connect to the MGMT06 out-of-band management card (typically a BMC chip) using the IPMI-over-LAN protocol as USER.

Solaris, SSH

$ metricshub SOLAR08 -t sol --ssh -u USER --sudo-command-list /usr/sbin/dladm,/usr/sbin/ndd

This command will connect to the SOLAR08 Solaris system using the SSH protocol (port 22 by default) to execute commands as USER. sudo will be used to execute the /usr/sbin/dladm and /usr/sbin/ndd commands, as they require root privileges.

Note: The system must have been configured to allow USER to execute these commands with sudo.

Storage System, REST API

$ metricshub STOR01 -t storage --https -u USER

This command will connect to the STOR01 storage system in HTTPS (port 443 by default) and check whether a known REST API responds with the USER credentials. The password will be asked for interactively. Use the -p P4SSW0RD option to specify the password directly in the command line (not secure!).

Storage System, SNMP v2c

$ metricshub CISC03 -t sto --snmp 2

This command will connect to the CISC03 SAN switch (storage) using SNMP version 2.

Note: SAN switches fall into the Storage category of systems, like disk arrays and tape libraries, and not in the Network category, like network switches and IP routers.

Storage System, SNMP v3

$ metricshub STOR02 -t storage --snmpv3 --snmpv3-auth SHA --snmpv3-username USERA --snmpv3-password MySECRET --snmpv3-privacy DES --snmpv3-retryIntervals 5,10,15 --snmpv3-privacy-password MyPrivacySECRET

This command will connect to the STOR02 storage system (storage) using SNMP version 3.

Windows, JDBC (MySQL)

$ metricshub WIN06 -t win --jdbc --jdbc-username USERA --jdbc-password MYSECRET --jdbc-port 3306 --jdbc-database MyDB --jdbc-type mysql -c +MySql

This command will connect to the WIN06 Windows system using the JDBC configuration to access the database and execute SQL queries as USERA.

Windows, WMI and SNMP v2c

C:\Program Files\MetricsHub> metricshub WIN04 -t win --snmp 2 --wmi

This command will connect to the WIN04 Windows system using SNMP version 2 with the public (default) community, and WMI as the current.

Note: The WMI protocol can only be used from a Windows system to monitor another Windows system.

Windows, WMI and WBEM (Alternate Credentials)

C:\Program Files\MetricsHub> metricshub WIN05 -t win --wbem --wbem-username USERA --wmi --wmi-username WINUSER

This command will connect to the WIN05 Windows system using WBEM as USERA, and WMI as WINUSER. The WBEM and WIM passwords will be asked for interactively.

Note: Instead of using the common -u or --username options, we had to use the --wbem-username and --wmi-username options to specify different credentials for WBEM and WMI.

WinRM

$ metricshub WIN09 -t mgmt --winrm --winrm-username USER --winrm-password MYSECRET

This command will connect to the WIN09 system using the WinRM protocol to execute commands as USER.

Automatic Detection vs Manual Selection

MetricsHub is bundled with Community Connector Library, a library which consists of a list of connectors that describe how to discover resource components (such as hardware, service and application components) and detect failures in a given system, with a specific instrumentation stack.

Examples of connectors:

  • Dell OpenManage Server Administrator (SNMP)
  • Network Cards on Windows (WMI)
  • IBM AIX physical disks, using system commands
  • etc.

When running the metricshub command, the connectors are automatically selected based on the specified system type and the protocol enabled. This is the detection phase.

You can however specify manually which connectors must be used to monitor the specified host, or exclude some connectors from the list that will be tested during the detection phase.

Configure connectors

The connectors are automatically selected based on the device type provided and the enabled protocols. However, you have the flexibility to specify which connectors should be utilized or omitted.

The --connectors CLI option allows you to force, select, or exclude specific connectors. Connector identifiers or category tags should be separated by commas, as illustrated in the example below:

$ metricshub SERVER01 -t oob --snmp v2c --community public --connectors +MIB2,#hardware,!Windows
  • To force a connector, precede the connector identifier with a plus sign (+), as in +MIB2.
  • To exclude a connector from automatic detection, precede the connector identifier with an exclamation mark (!), like !Windows.
  • To stage a connector for processing by automatic detection, configure the connector identifier, for instance, MIB2.
  • To stage a category of connectors for processing by automatic detection, precede the category tag with a hash (#), such as #hardware or #system.
  • To exclude a category of connectors from automatic detection, precede the category tag to be excluded with an exclamation mark and a hash sign (!#), such as !#system.

Examples

  • Example 1:

    $ metricshub SERVER01 -t win --snmp v2c --community public --connectors "#hardware"

    The core engine will automatically detect connectors categorized under hardware.

  • Example 2:

    $ metricshub SERVER01 -t win --wmi --connectors !#hardware,#system

    The core engine will perform automatic detection on connectors categorized under system, excluding those categorized under hardware.

  • Example 3:

    $ metricshub SERVER01 -t win --snmp v2c --community public --wmi --connectors MIB2NT,MIB2,#system

    The core engine will automatically detect connectors named MIB2NT, MIB2, and all connectors under the system category.

  • Example 4:

    $ metricshub SERVER01 -t win --snmp v2c --community public --wmi --connectors +DiskPart,MIB2,#system

    The core engine will force the execution of the DiskPart connector and then proceed with the automatic detection of MIB2 and all connectors under the system category.

  • Example 5:

    $ metricshub SERVER01 -t win --wmi --connectors DiskPart,!#system

    The core engine will perform automatic detection exclusively on the DiskPart connector.

  • Example 6:

    $ metricshub SERVER01 -t win --snmp v2c --community public --connectors +Windows,MIB2

    The core engine will force the execution of the Windows connector and subsequently perform automatic detection on the MIB2 connector.

  • Example 7:

    metricshub SERVER01 -t win --snmp v2c --community public --connectors !Linux

    The core engine will perform automatic detection on all connectors except the Linux connector.

  • Example 8:

    metricshub SERVER01 -t win --snmp v2c --community public --connectors "#hardware,!MIB2"

    The core engine will perform automatic detection on connectors categorized under hardware, excluding the MIB2 connector.

To get the list of connectors bundled in MetricsHub and their corresponding internal name (id), you can run the below command:

$ metricshub --list

This will provide a list as below:

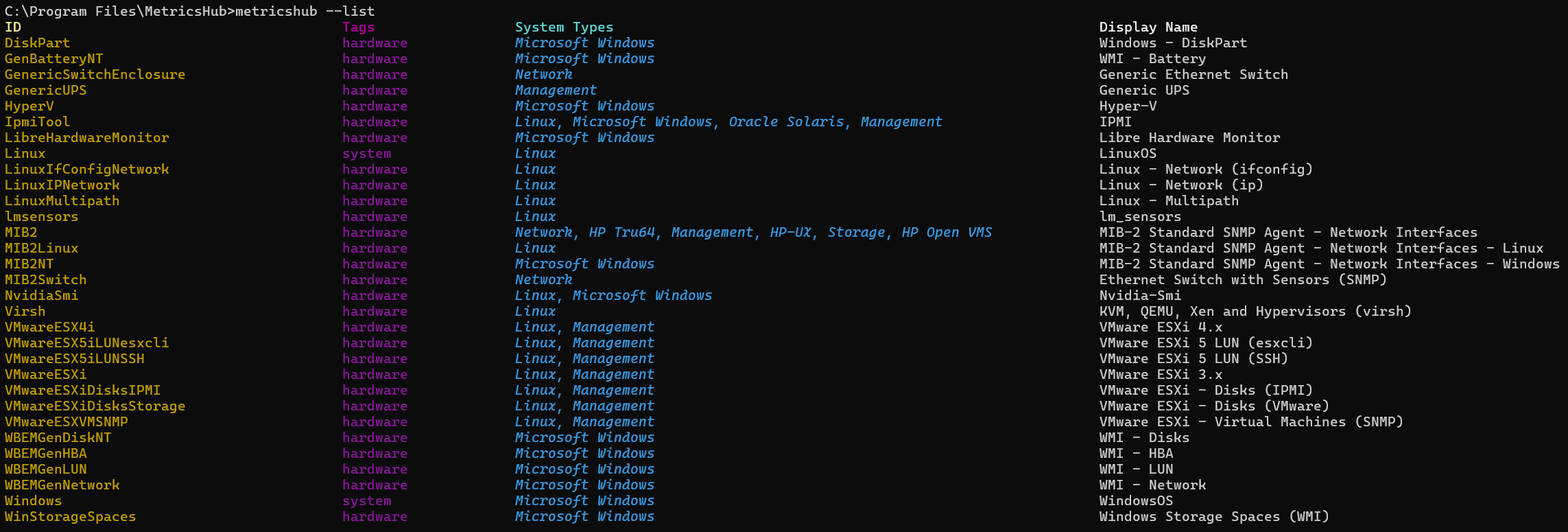

Output of the metricshub list command, listing all connectors, their ID, categories, applicable system types and display name

This list displays the internal name (id) of each connector, its applicable system types and its display name.

Patch Connectors

By default, MetricsHub loads connectors from the connectors subdirectory within its installation directory. However, you can extend this functionality by configuring a custom directory for additional connectors. This can be done by specifying the --patch-directory option as bellow:

$ metricshub SERVER01 -t linux --snmp v2c --community public --patch-directory /opt/patch/connectors

Sequential Mode

By default, the MetricsHub Engine sends the queries simultaneously to the host resource. Although the parallel transmission is faster than the sequential one, too many requests at the same time can lead to the failure of the targeted host resource.

Use the --sequential option to force all the requests to be executed in a sequential order, thus the monitored host is not overloaded.

$ metricshub SERVER01 -t linux --snmp 1 --community COMM02 --sequential

Iterations

You can run the collect operation many times (e.g: to compute energy or rate metrics, you need to run it at least twice).

Use --iterations option to define the number of times the collect operation will be executed and --sleep-iteration to define the duration in seconds of the pause between two collect operations.

$ metricshub SERVER01 -t oob --snmp v2c --community public --iterations 2 --sleep-iteration 5

Filtering Monitor Types

Use the --monitors option to filter the monitor types according to the specified inclusion or exclusion criteria.

Note: If both inclusion and exclusion are configured, the inclusion (+) has priority over exclusion (!).

Example 1: Display Only a Set of Monitor Types

To display only specific monitor types, use the --monitors option with a + sign before each monitor type you want to include. For example, to display only memory and file system monitors:

$ metricshub STOR02 -t storage --snmpv3 --snmpv3-auth SHA --snmpv3-username USERA --snmpv3-password MySECRET --snmpv3-privacy DES --snmpv3-retryIntervals 5,10,15 --snmpv3-privacy-password MyPrivacySECRET --monitors +memory,+file_system

Example 2: Exclude a Set of Monitor Types

To exclude specific monitor types, use the --monitors option with a ! sign before each monitor type you want to exclude. For example, to exclude CPU and disk monitors:

$ metricshub STOR02 -t storage --snmpv3 --snmpv3-auth SHA --snmpv3-username USERA --snmpv3-password MySECRET --snmpv3-privacy DES --snmpv3-retryIntervals 5,10,15 --snmpv3-privacy-password MyPrivacySECRET --monitors !cpu,!disk
