System Performance

MetricsHub collects and normalizes system performance metrics from AIX, HP-UX, Linux, and Windows platforms and exposes them in the System Performance Metrics – Overview (MetricsHub) and System Performance Metrics (MetricsHub) Grafana dashboards.

This section explains how to import these dashboards into Grafana.

Prerequisites

Before importing the System Performance Metrics dashboards in Grafana, ensure that you have:

Log on to your Grafana server
Import the dashboard(s)
Use the following IDs to import the System Performance dashboards for MetricsHub:

ID	Name	Description	Metrics	Usage
`24972`	System Performance Metrics – Overview (MetricsHub)	Global system dashboard providing a consolidated view of system health and current issues across all monitored hosts.	Aggregated indicators across hosts, including alerts, protocol health, resource utilization (CPU, memory, storage, network), and OS distribution.	Use for situational awareness and triage. Ideal to quickly identify unhealthy systems and prioritize investigation across the infrastructure.

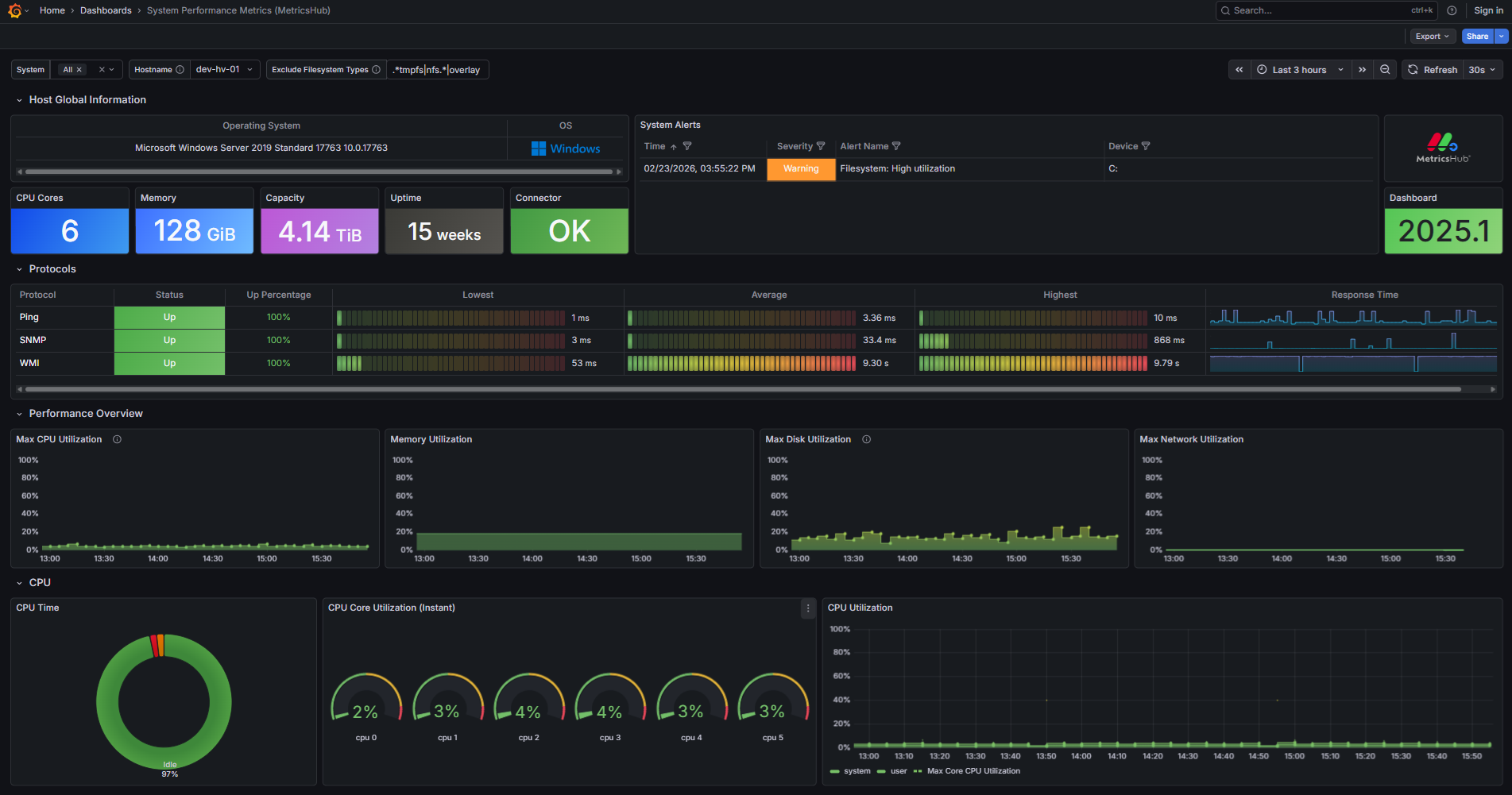

`24058`	System Performance Metrics (MetricsHub)	Host-level dashboard providing detailed performance metrics, protocol health, and system metadata for a selected host.	Detailed per-host metrics, including CPU, memory, filesystem, disk, and network utilization, along with protocol performance (availability, response times) and system metadata.	Use for troubleshooting and root cause analysis. Ideal to investigate a specific host and analyze performance issues in depth.

The System Performance Metrics dashboards are now available in Grafana.
